FTTx Optical Termination Box FTTx  Optical Termination Box
$00.00 In stock
Product description: FTTx Optical Termination Box .

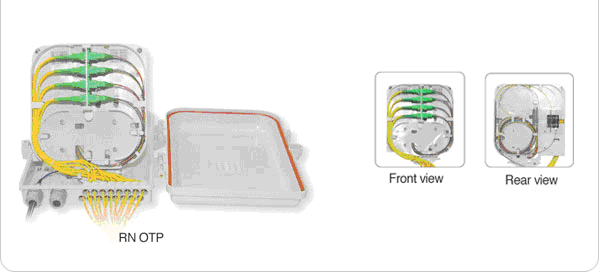

FTTH-Optical Termination Box (FTTH-OTB) is designed to connect feeder/distribution cable to subscriber's drop cable using PLC splitter in Fttx networks. FTTH-OTB has 2 input ports and 16 output ports on the bottom and it is easy to install on the wall or pole. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.

Fearture

  • - User familiar industry interface, using high impact plastic
  • - Can accommodate 1x8 PLC splitter and 1x16 PLC splitter
  • - Ultra violet resistant and rainfall resistant
  • - Up to 16 FTTH drops
  • - Wall and pole mountable
  • - 2 inlet ports, 16 outlet ports

Specifications



NWC FTTH-Optical Termination Box Spec

ITEM

Values

Dimensions

L : 225, W : 302, H : 71

Weight

1.3

Cable input port

Max. 2 ports (Max. dia. : 12)

Cable output capacity

Max. 16 ports (Max. dia. : 3)

Max. capacity

12 core

Operation Temperature

-40 ~ +85℃

OTB Resin

Tensile Strength

≥ 450/, @10/min

Impact Strength

35㎏㎝/ (normal temp.), 10㎏㎝/ (-30℃)

Flexural Strength

≥ 450/, @10/min
